Brand: HBYIQI

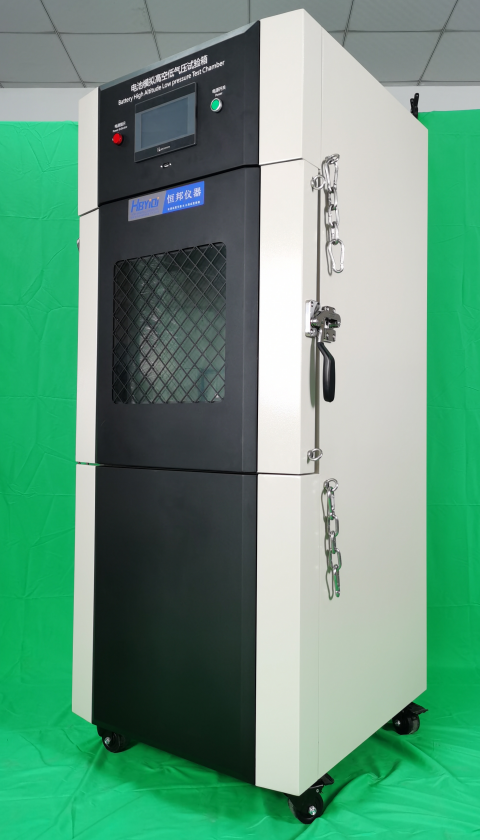

Equipment Name: Simulated High Altitude Low Pressure Test Chamber 420L
Equipment Purpose:
The Simulated High Altitude Low Pressure Test Chamber (also known as a vacuum negative pressure chamber) has gained increasing attention due to the widespread application of 3C products, whose safety and performance under extreme environmental conditions are of growing concern. Particularly in high-altitude low-pressure environments, product performance may be severely affected. This chamber uses advanced environmental simulation technology to create conditions similar to actual high-altitude low-pressure environments inside the chamber.
Test Standard:
Refer to relevant standard test requirements or equivalent requirements:
Complies with tests specified in standards of GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS, and other countries.
Technical Parameters
| Model | HB-DQY-420L(A/B/C) |
| Internal Dimensions (Approx.) | W750xD750xH750mm |
| External Dimensions (Approx.) | W1070xD1070xH2000mm |
| Internal Material | Reinforced steel + stainless steel (thickness ≥5.0mm) |
| External Material | SECC steel plate, fine powder coating treatment (thickness 1.2mm) |
| Structure | All-in-one structure |
| Control Method | PIC touchscreen control and display (programmable setting) |
| Air Pressure | Type A: 101Kpa~20Kpa
Type B: 101Kpa~5Kpa
Type C: 101Kpa~0.5Kpa |
| Unit | Kpa / pa |
| Resolution | 0.1kPa |
| Timing | 999H59M59S |
| Visible Window | 200x200mm (20mm thick tempered explosion-proof glass) with protective steel mesh |
| Power Supply | AC 220V 50HZ (or customized by country) |
| Power (Approx.) | 1.5KW |
| Additional Options | Terminal block device |
For more information, please contact Hengbang Salesperson(HBYIQI).
